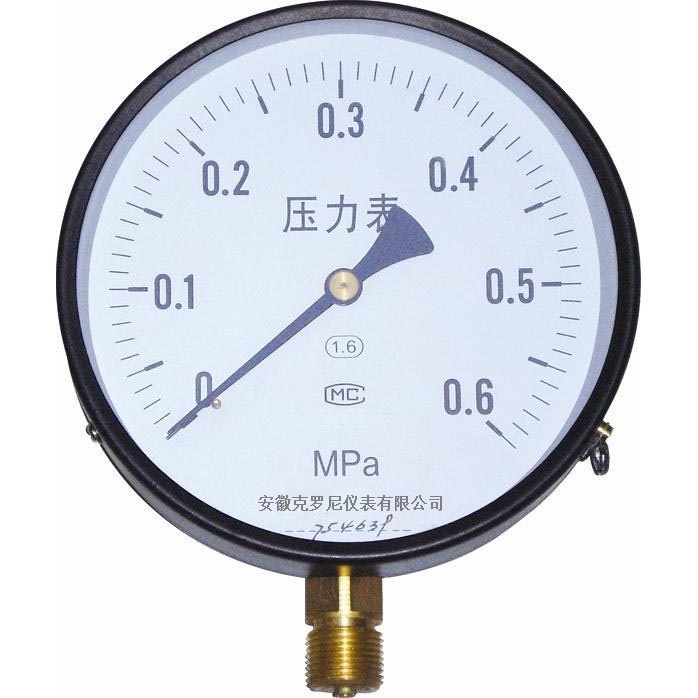

Ordinary pressure gauge Y-100 Y-150
DATE:2015-08-12 HITS:0
| Processing customized | yes | brand | kerone | model | Y-100 Y-150 |
| type | Ordinary pressure gauge | Measuring range | The whole range（MPa） | specifications |
Y-100The whole range ,Y-150The whole range |
1 overview
Ordinary pressure gauge
Ordinary belong to on-site instruction type pressure gauge pressure gauges, the size of the local display pressure, without a remote display, regulating function.
In the process of industrial process control and technology measure, due to the flexibility of general pressure gauge sensor has high mechanical strength and production convenient, installation simple reading convenient features, makes the general pressure gauge is more and more widely used.
2 use
General pressure gauges for measuring no explosion, crystallize, solidify, for copper and copper alloy non-corrosive effect of the liquid, gas or steam pressure and vacuum.
Three principles
The working principle of figure
By ordinary pressure gauge in the table of the sensitive element, the elastic deformation of bourdon tube, again through the transformation mechanism of movement in table will pressure deformation to a pointer, pointer rotation to display the pressure.
The technical parameters of four ordinary pressure gauge:
|
model
|
Structure form
|
precision
|
Measuring range
MPa
|
|
Y-50
Y-50T
Y-50Z
Y-50ZQ
|
Radial infinite
Radial bring back
The axial endless
The axial belt in front of
|
±2.5
|
-0.1～0;-0.1～0.06;-0.1～0.15;
-0.1～0.3;-0.1～0.5;-0.1～0.9
-0.1～1.5;-0.1～2.4;0～0.16;0～0.25;
0～0.4;0～0.6;0～1.0;0～1.60～2.5;
0～4.0;0～6.0;0～10;0～16 ；0～25;
0～40;0～60;0～100
|
|
Y-60
Y-60T
Y-60Z
Y-60ZQ
|
Radial infinite
Radial bring back
The axial endless
The axial belt in front of
|
||
|
Y-75
Y-75T
Y-75Z
Y-75ZQ
|
Radial infinite
Radial bring back
The axial endless
The axial belt in front of
|
||
|
Y-100
Y-100T
Y-100Z
Y-100ZQ
|
Radial infinite
Radial bring back
The axial endless
The axial belt in front of
|
±1.6
|
|
|
Y-150
Y-150T
Y-150Z
Y-150ZQ
|
Radial infinite
Radial bring back
The axial endless
The axial belt in front of
|
||
|
Note: the axial with square in front of or clamp as required
|
Use the working temperature: - 40 ℃ ~ 70 ℃
Resistance to vibration environment: v. h. level 3;
Relative humidity is not more than 90%;
Temperature: no more than 0.4% / 10 ℃ (using the temperature deviation from 20 + / - 5 ℃);
Execution standard: GB/T1226-2001;
The appearance of five ordinary pressure gauge size:
Overall dimensions
|
model
|
Overall dimensions
mm
|
||||||
|
A
|
B
|
C
|
D
|
d
|
d0
|
M
|
|
|
Y-50
|
29
|
24
|
9
|
50
|
/
|
/
|
G1/4
|
|
Y-50T
|
29
|
27
|
11
|
60
|
3.4
|
||
|
Y-50Z
|
29
|
24
|
0
|
/
|
/
|
||
|
Y-50ZQ
|
29
|
24
|
0
|
60
|
3.4
|
||
|
Y-60
|
31
|
32
|
14
|
60
|
/
|
/
|
14X1.5
|
|
Y-60T
|
31
|
32
|
15
|
75
|
3.4
|
||
|
Y-60Z
|
30
|
32
|
0
|
/
|
/
|
||
|
Y-60ZQ
|
30
|
32
|
0
|
75
|
3.4
|
||
|
Y-75
|
24
|
30
|
12
|
75
|
/
|
/
|
|
|
Y-75T
|
24
|
30
|
12
|
90
|
5.5
|
||
|
Y-75Z
|
24
|
30
|
0
|
/
|
/
|
||
|
Y-75ZQ
|
24
|
30
|
0
|
90
|
5.5
|
||
|
Y-100
|
44
|
45
|
18
|
100
|
/
|
/
|
20X1.5
|
|
Y-100T
|
44
|
46
|
19
|
118
|
5.5
|
||
|
Y-100Z
|
43
|
45
|
34
|
/
|
/
|
||
|
Y-100ZQ
|
43
|
45
|
44
|
118
|
5.5
|
||
|
Y-150
|
50
|
47
|
19
|
149
|
/
|
/
|
20X1.5
|
|
Y-150T
|
50
|
48
|
20
|
165
|
5.5
|
||
|
Y-150Z
|
51
|
47
|
55
|
/
|
/
|
||
|
Y-150ZQ
|
51
|
47
|
55
|
165
|
5.5
|
||
|
Note: connection thread can order as required
|
6 connection thread sizes
Connection thread sizes
|
The shell nominal diameter
|
Joint size
|
||
|
D
|
d
|
L
|
d1
|
|
mm
|
mm
|
mm
|
mm
|
|
50
|
M14×1.5
|
14
|
5
|
|
60
|
M14×1.5
|
14
|
5
|
|
75
|
G3/8
|
14
|
5
|
|
100
|
M20×1.5
|
20
|
6
|
|
150
|
M20×1.5
|
20
|
6
|
7 using the matters needing attention
1) work pressure it is advisable to use the full range of 1/3 to 2/3, scope of use shall not exceed the highest 3/4 of the full scale.
2) verification period is generally not more than half a year, medium pressure parts of volatility, used frequently, the accuracy of the demand is higher, and more strict with safety factor, will test cycle shorten appropriately according to the specific situation.
3) work environment should be no corrosive gas.
