Product information

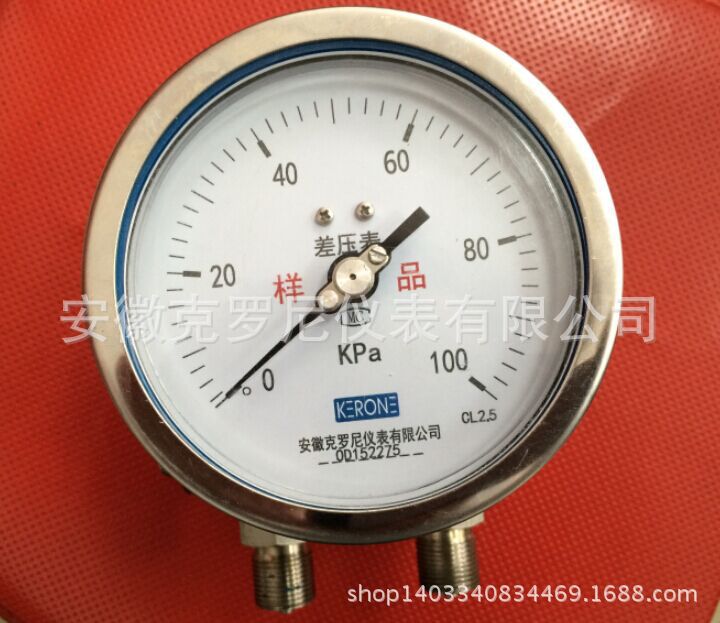

Product name: high static pressure double diaphragm stainless steel differential pressure table YCA - 100 - b

Surface diameter: ? (100) mm

Range: the whole range

Level of accuracy: 2.5%

Threaded connections: G1/2, the NPT, BSP

Installation method: radial

The maximum static pressure: 10 mpa

Material: 304 l, 316 l



Applicable to chemical, brazing, metallurgy, electric power, nuclear power and the technological process in industrial sector in the measurement of the medium of the liquid (gas) differential pressure, flow and other parameters. Meter are all made of stainless steel structure, the measurement system (double corrugated pipe connecting parts, guide pressure system (including joints, pipe, etc.) USES the special structure of reasonable design, advanced technology, has small volume, light weight, good stability, long service life, novel appearance, strong adaptability, etc. Instrument with parallel connection form of joint type (can be directly connected to the three valve group) and oblique type two kinds, can adapt to different customer supporting installation.
